Hex Head Composite Panel Screws with EPDM Washers for Heavy Gauge Steel

Hex head self-drilling composite panel screws screws with EPDM Watertight Washers designed for fixing into heavy-gauge steel sections 4.5–12.0mm thick, without the need for a pilot hole.

All Hex Head Tek screws are supplied in a 5.5/6.3mm gauge and packaged in boxes of 100 or 50 depending on the length. Composite panel screws have a dual-diameter design. The upper portion (of the shank) is 6.3mm, while the lower, finer threaded part is 5.5mm, allowing it to grip the steel substrate effectively after the self-drilling point creates the pilot hole.

A durable exterior plating provides reliable corrosion resistance, tested to 500 hours salt-spray performance.

Specifications

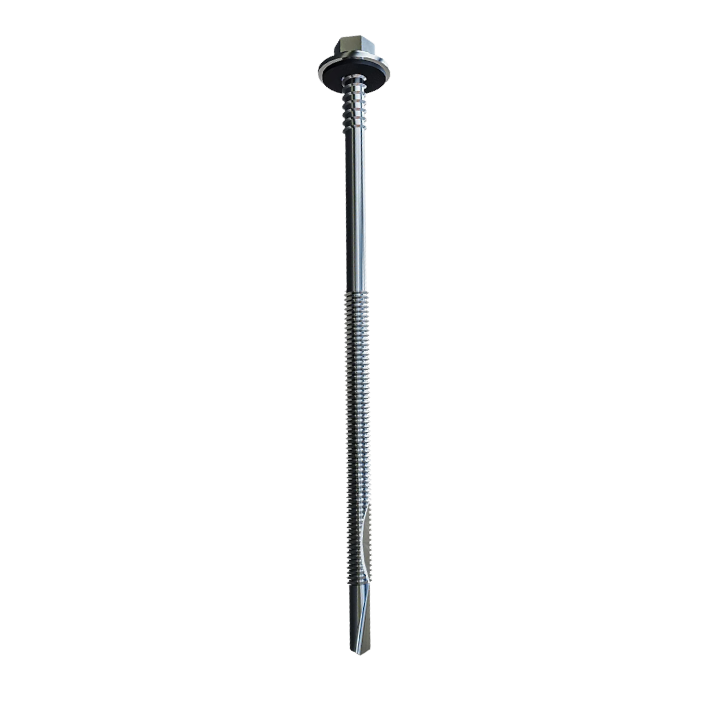

• Head type: Hex head with bonded washer (as pictured)

• Screw gauge: 5.5mm / 6.3mm

• Steel thickness: 4.5–12.0mm

• Pack size: Boxes of 50 or 100

• Corrosion resistance: 500 hours salt-spray

• Additional Washer: EPDM
